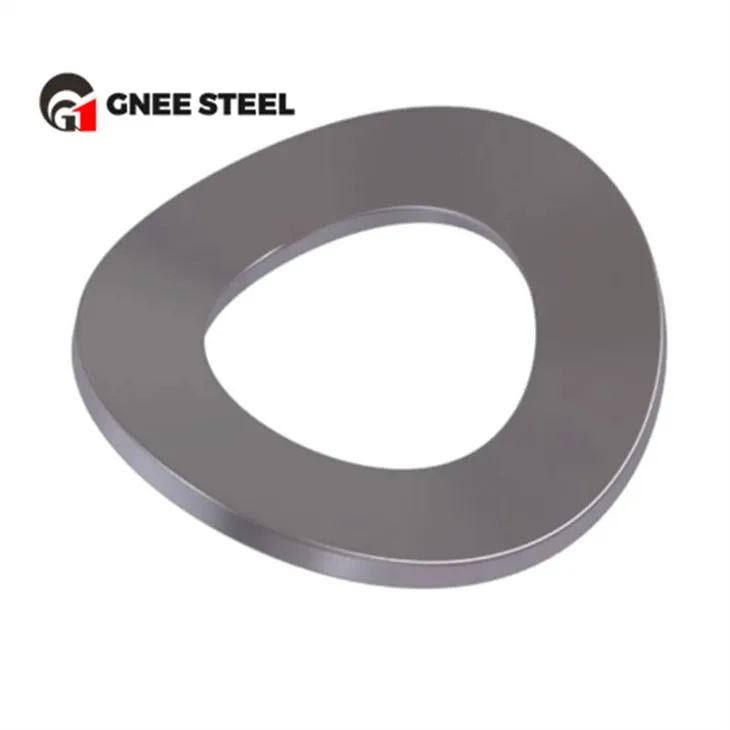

DIN137 steel wave washers are a type of component specially used for connecting and fixing mechanical parts. They have a unique wave structure and excellent elastic properties.
DIN137 wave washers are divided into type A and type B according to their appearance. They are suitable for bolts and nuts with a strength grade of 5.8 or below. Their function is to rely on their own resilience to maintain the preload of bolts and nuts to prevent the workpiece from loosening. They are used to connect and fix key components in these devices to ensure the stability and safety of the equipment.
| 1 | 1.2 | 1.4 | 1.7 | 1.8 | 2 | 2.3 | 2.6 | ||
| d | Min=Nominal (H14) | 1.1 | 1.3 | 1.5 | 1.8 | 1.9 | 2.2 | 2.5 | 2.8 |
| 1.35 | 1.55 | 1.75 | 2.05 | 2.15 | 2.45 | 2.75 | 3.05 | ||
| Nominal (js16) | 2.5 | 3 | 3 | 4 | 4 | 4.5 | 5 | 5.5 | |
| h | 0.2 | 0.2 | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.3 | |
| H | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.5 | 0.5 | 0.55 | |
| 0.7 | 0.7 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1.1 | ||
Saddle spring washers DIN 137
With over 16 years of experience in stainless steel fastener manufacturing, industry experience and state-of-the-art facilities.
sales@gneetube.com
A: Normally the delivery time is around 10 days after payment.
