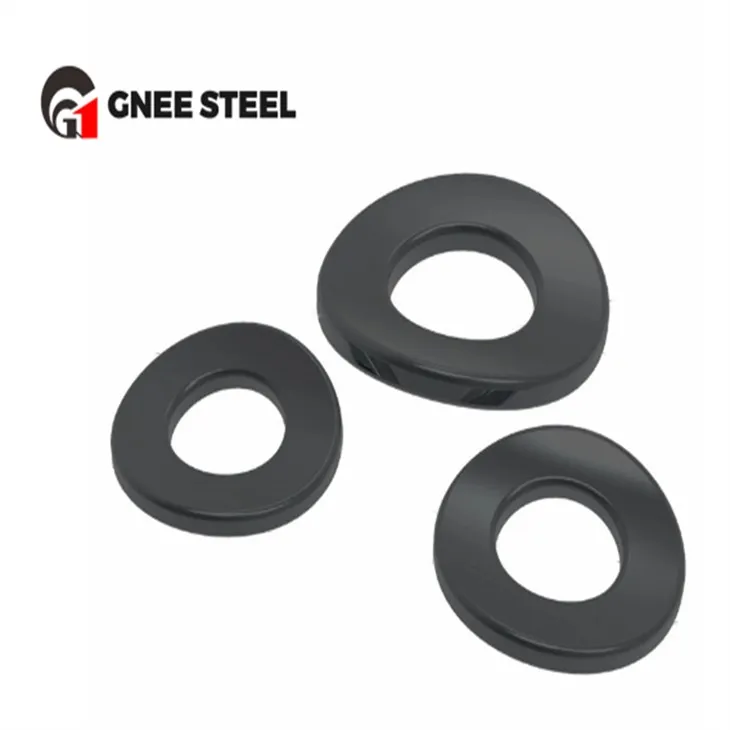

DIN42013 Wave Spring Lock Washer is a wave spring washer specifically used for axial adjustment of ball bearings in small motors.
DIN42013 Saddle spring washers are made of wave springs with several peaks and valleys on a thin metal ring, and are wavy in shape. By utilizing its elastic deformation characteristics, it can return to its original shape and maintain close contact when subjected to force, thereby achieving a sealing effect. Prevent fasteners from loosening.
| 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||
| d | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | ||
| 3.5 | 4.6 | 5.6 | 6.76 | 8.76 | 10.93 | 13.43 | |||
| dc | 7.42 | 8.42 | 10.3 | 11.3 | 14.3 | 20.16 | 23.16 | ||
| 8 | 9 | 11 | 12 | 15 | 21 | 24 | |||
| H | 0.8 | 1 | 1.1 | 1.3 | 1.5 | 2.1 | 2.5 | ||
| 1.6 | 2 | 2.2 | 2.6 | 3 | 4.2 | 5 | |||
| h | 0.5 | 0.5 | 0.5 | 0.5 | 0.8 | 1 | 1.2 | ||
Saddle spring washers DIN42013
